VDWall LVP615 Series LED Display Controller LVP615 615S 615D 615U LED Video Processor
Parameters
Key features
LVP615 series LED HD Video Processor wireless WI-FI control&remote control pip/pbp,text overlay synchronic Multi-unit In Parallel.
1. New generation Faroudja® Real Color® professional LED video processor,10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™ videoenhancer.
2.SeamlessSwitching,FadeinFadeoutSwitching,Blend Switching

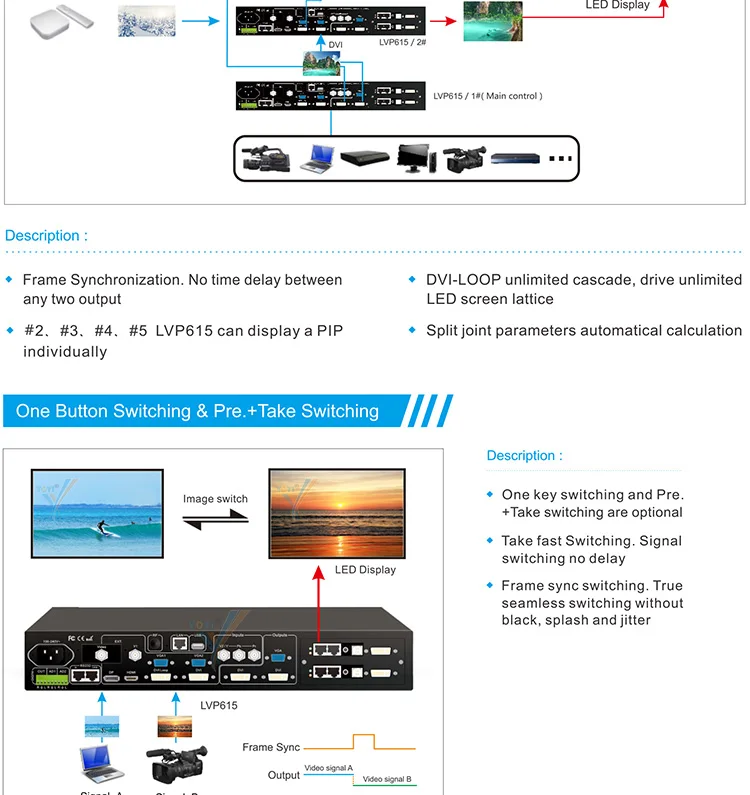

3.Twosignalswitching ways:one keyswitchandPre.+Takeswitch

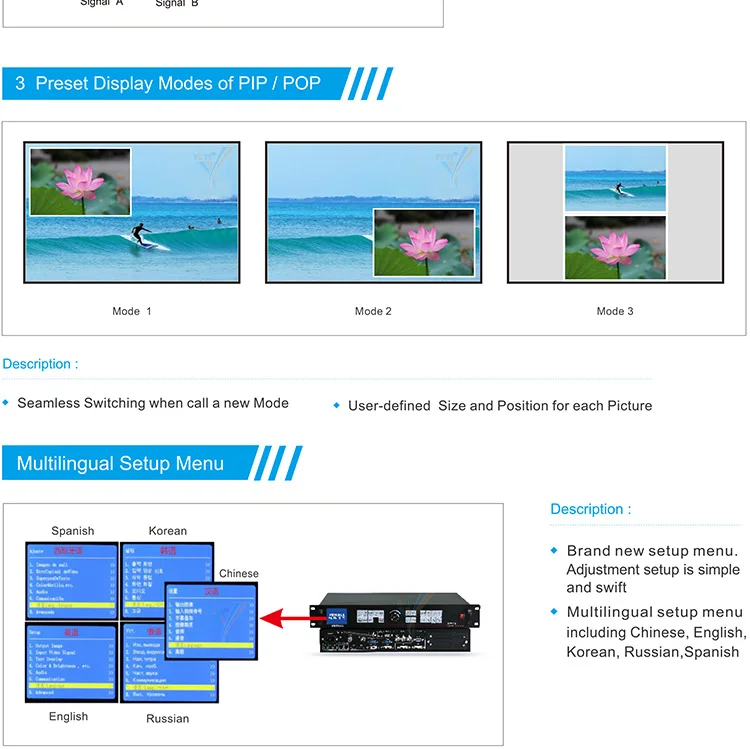

4. 3 sets of custom dualpicture display mode, one key switch between modes. Any PIP/PBP display. AIAO(Any In Any Out) function, any interception andanyoutput.
5. Inputsignalhotsparefunctiontoensureoutputmorestable.

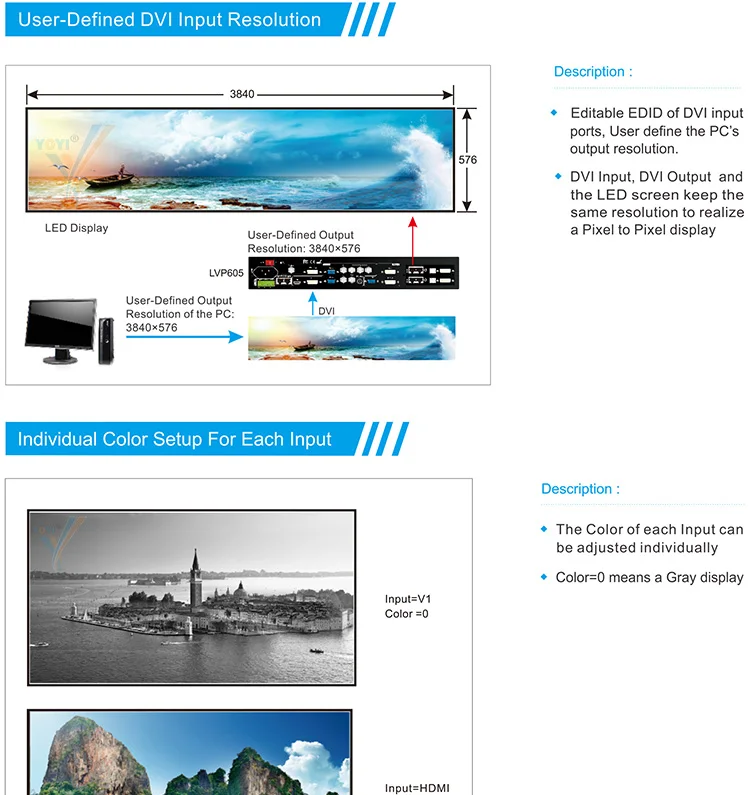

6. Custominput DVIEDIDtorealizeperfectpixeltopixeldisplay.
7.Custom output format. Single unit maximum output horizontal 3840 pixelsorvertical1920pixels.
8. DVI input port supports APPLE PC. DVI Loop unlimited cascade to realize sync. mosaic to drive indefinite LED lattice. Frame sync technology . No miss alignment or delay between two adjacent image outputs.

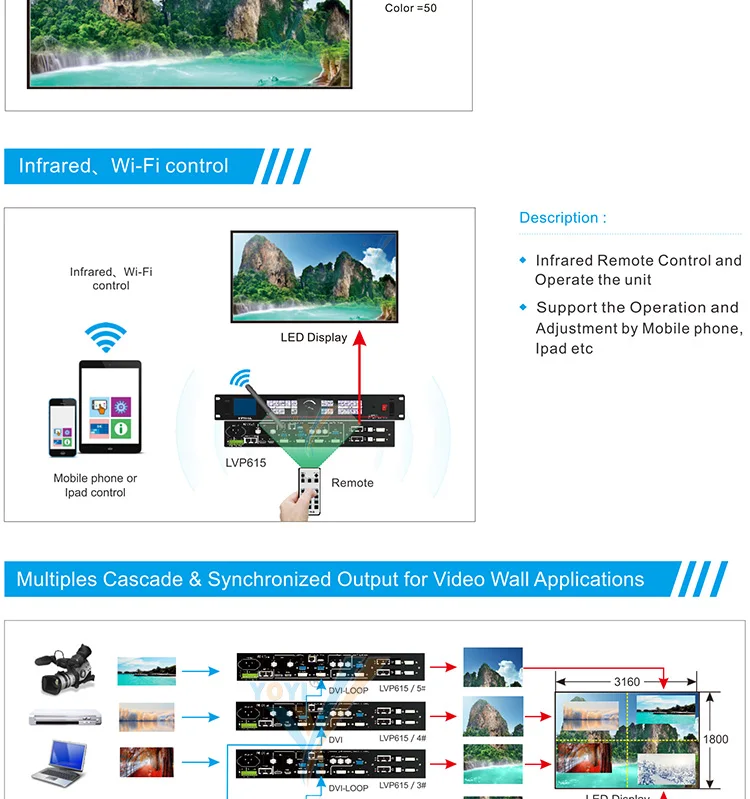

9.Avariety ofcontrolmethods:wirelessWIFI, IP/LAN, frontpanelbutton, infraredremote control,PC software,Ipad,mobile phone terminaland etc..Flexibleoperation.
10.2 channels configurable external audio inputs. Plus HDMI,DP and SDI audiototal5channelsaudiosyncswitch.
11. Built in 2 pieces LED sending cards(compatible 4 RJ45 ports sending cards.Cardsareoptional.)
12. 24/7application,highreliabilityandstability
LVP615 series product model description
*LVP615: Extend interface optional 1×CVBS
*LVP615S:Extend interface optional 1×SDI/HD-SDI/3G-SDI
*LVP615D:Extend interface optional 1×VGA/DVI/HDMI
*LVP615U:Extend interface optional 1×Wi-Fi+2×USB
Key Parameters
|
Inputs |
|
Number/type
|
2×Video
1×YPbPr
2×VGA(VESA)
1×DP(VESA)
1×DVI(VESA)
1×HDMI(VESA/CEA-861)
1×EXT.(extended Video/DVI-I/SDI)
|
|
Video system |
PAL/NTSC |
|
Composite video scope/ Impedance |
1V(p_p)/ 75Ω |
|
YPbPr format |
SD/HD(CEA -861) |
|
YPbPr
Amplitude/Impedance
|
Y= 1.0V(p_p)/ 75Ω
Pb= 0.35V(p_p)/ 75Ω
Pr= 0.35V(p_p)/ 75Ω
|
|
VGA format |
PC(VESA) ≤2048x1152 _60Hz
|
|
VGA Amplitude/Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω
|
|
DP format |
DisplayPort1.1(VESA) |
|
DVI format |
PC(VESA)
≤2304x1152_60Hz
HDMI1.3(CEA -861)
Custom output format width≤3840 height≤1920
|
|
HDMI format
(HDCP1.3)
|
PC(VESA) ≤2304x1152_60Hz
HDMI1.3(CEA -861) ≤1920x1080p_60Hz
|
|
SDI format
|
SMPTE259M-C SMPTE 292M 480i_60Hz
SMPTE 274M/296M 576i_50Hz
SMPTE 424M/425M 720p,1080i,1080p
|
|
Audio |
2.0Vp-p/10KΩ |
|
Input connectors |
Video:BNC
YPbPr:BNC×3
VGA:15pin D_Sub(female)
DP:DisplayPort SMT female 20pin
DVI:24+1 DVI_D
HDMI:HDMI port A type
SDI :BNC
|
|
Outputs |
|
Number /Type |
1×VGA(RGBHV)
2×DVI
|
|
VGA/DVI resolution |
1024×768_60Hz/75Hz
1080×1920_60 Hz
1200×1600_60 Hz
1280×1024_60Hz/75Hz
1366×768_60Hz
1440×900_60Hz
1536×1536_60 Hz
1600×1200_60Hz
1920×1080p_50Hz/60Hz
1920×1200_60 Hz
2048×1152_60Hz
2304×1152_60Hz
2560×816_60Hz
Custom output format(maximum output horizontal 3840 pixels or vertical 1920 pixels.)
|
|
VGA Amplitude/Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω
|
|
Output ports |
VGA OUT:15pin D_Sub( female)
DVI OUT1:24+1 DVI_D
DVI OUT2:24+1 DVI_D
|
|
Others |
|
Control methods |
Wireless wifi,IP/LAN,front panel button,infrared remote control, PC software,Ipad, mobile phone terminal and etc..
|
