Lvp605S Led Video Processor Software and Led Display Video Processor
Parameters
Key features
LVP605 series HD LED Video Processor
Seamless Switching
Fade-in / Fade-out switching & Blend switching
4 custom PIP / POP display modes
HD Text, Flash, Graphics & Logo Overlay
1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife™ Video Enhancer
4. Advanced 4x4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080P input
6. SDI / HD-SDI / 3G-SDI (1080P) Input
7. 10-bit Processing
8. Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals

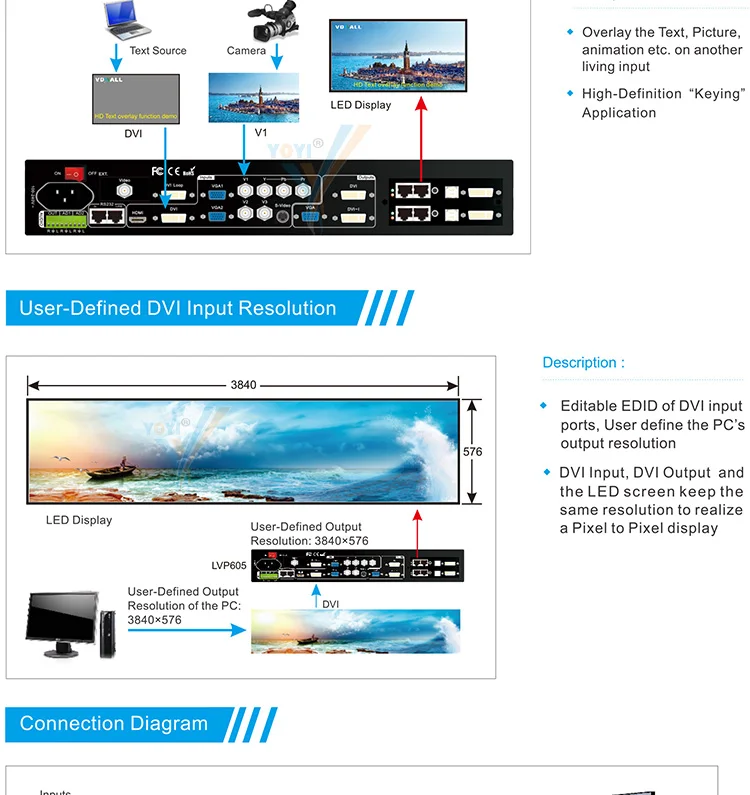

9. HD Text, Flash, Graphics & Logo Overlay
10. 4 custom PIP / POP display modes, which can be switched by pressing one button
11. Hot Spare function, display will be stable and reliable
12. Picture Freeze function
13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
14. 2304 x 1152 or 2560 x 816 output for single machine

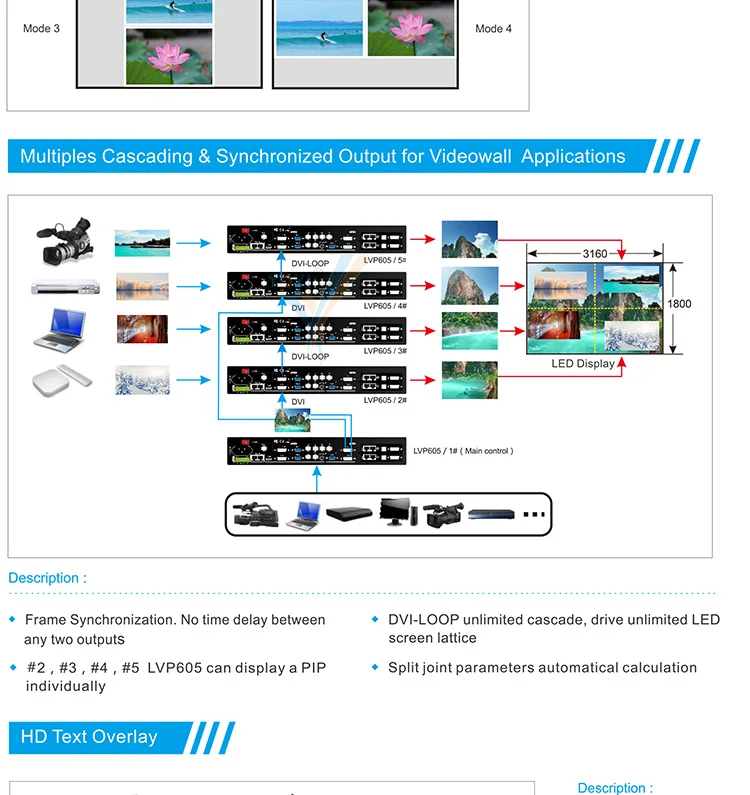

15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting
17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
3×CVBS 1×DVI 1×HDMI
2×VGA 1×YPbPr / YCbCr 1×S-Video
1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )
18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,there are 5-channel audio for synchronous switch
19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
20. 24 / 7 Application
LVP 605 series product model description
*LVP605: Extend interface optional 1×Video
*LVP605S:Extend interface optional 1×SDI/HD-SDI/3G-SDI
*LVP605D:Extend interface optional 1×VGA/DVI/HDMI
Key Parameters
|
Inputs |
|
Number/Type |
3×Video
1×S-Video
1×YPbPr
2×VGA (RGBHV)
1×HDMI (VESA/CEA-861)
1×DVI (VESA)
1×EXT. (Extended)
|
|
Video system |
PAL/NTSC |
|
Composite Video
Amplitude/Impedance
|
1V (p_p) / 75Ω |
|
S-Video Amplitude /Impedance |
Y: 1.0V (p_p) / 75Ω, C: 0.35V (p_p) / 75Ω |
|
VGA Format |
PC (VESA) ≤2048x1152_60Hz |
|
VGA Amplitude /Impedance |
R,G,B = 0.7 V (p_p) / 75Ω |
|
DVI Format |
PC(VESA) ≤2304x1152_60Hz |
|
HDMI Format ( HDCP ) |
PC(VESA) ≤2304x1152_60Hz
HDMI1.3(CEA -861) ≤1920x1080p_60Hz
|
|
YPbPr Format |
D/HD (CEA-861) ≤1920x1080P_60Hz |
|
YPbPr Amplitude /Impedance |
Y= 1.0V (p_p)/75Ω
Pb= 0.35V (p_p)/75Ω
Pr= 0.35V (p_p)/75Ω
|
|
SDI format
|
SMPTE259M-C SMPTE 292M 480i_60Hz
SMPTE 274M/296M 576i_50Hz
SMPTE 424M/425M 720p,1080i,1080p
|
|
Audio Scope/Impedance |
2.0Vp-p/10K
|
|
Input Connectors |
VGA: 15-pin D_Sub (Female)
DVI: 24+1 DVI_D
YPbPr: BNC×3
Video: BNC
S-Video: 4pin mini DIN (Female)
SDI: BNC
|
|
Outputs |
|
Number/Type |
1×VGA (RGBHV)
2×DVI
|
|
VGA/DVI Format |
1024×768_60Hz/75Hz
1280×1024_60Hz/75Hz
1600×1200_60Hz
1920×1080p_50Hz/60Hz
1366×768_60Hz
1440×900_60Hz
2048×1152_60Hz
2560×816_60Hz
2304×1152_60Hz
1920×1200_60 Hz
1200×1600_60 Hz
1080×1920_60 Hz
1536×1536_60 Hz
Customizable output format (maximum horizontal pixel: 3840 or maximum vertical pixel: 1920)
|
|
VGA Amplitude /Impedance |
R,G,B = 0.7 V (p_p) / 75Ω |
|
Output Connectors |
VGA OUT: 15-pin D_Sub (Female)
DVI OUT1: 24+5 DVI_I
DVI OUT2: 24+1 DVI_D
|
